Advanced Eddy Current Instrument

ETbox2i

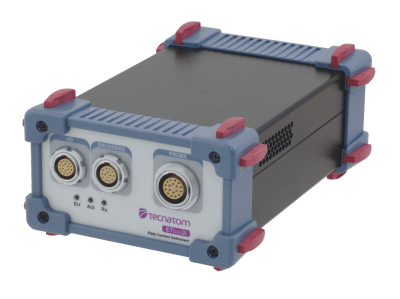

ETbox2i_RS_SN

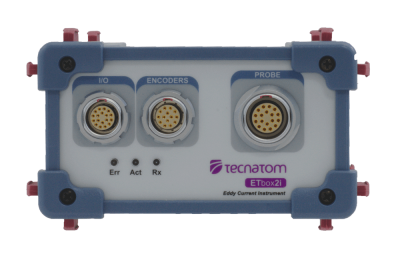

ETbox2i_F_SN

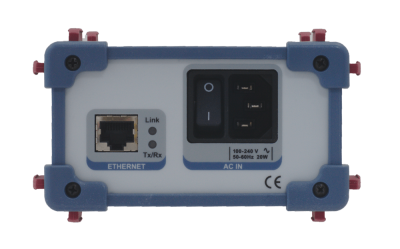

ETbox2i_R_SN

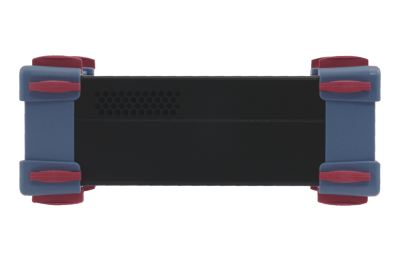

ETbox2i_S_SN

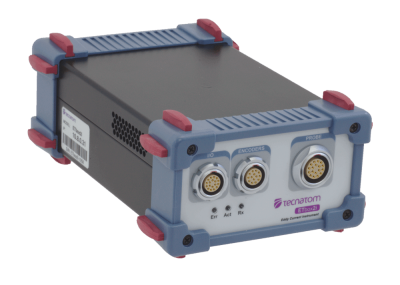

ETbox2i_LS_SN
SHOW ALL PHOTOS

Main Features

ETbox2i is a digital multi-channel and multi-frequency portable Eddy current instrument for inspection of components in the electricity generation, nuclear and industrial sectors. It supports standard Eddy current (ET) and remote field (RFT) tubing probes and surface scanning arrays. TEDDY software available for acquisition and analysis. Now you have the power of a high-end instrument in a compact lightweight package

  1. Multi-channel and multi-frequency capabilities. Up to 128 channels.
  2. Configurable with different probes: Bobbin, RFT, Surface Probe, or Multi-coil/Array probes with multiplexer options
  3. Multiplexed and simultaneous injection modes.
  4. Wide frequency range of 10 Hz to 5 MHz. Independent channel gain control. Hardware null and reference probe simulation.
  5. 100% digital signal processing on board. FIR filters and signaldetection threshold.
  6. Low power consumption. Single board. High immunity against EMC noise.
  7. On board 100/1000 Ethernet FPGA controller. No need ofembedded PCs.
  8. Easy to transport. Reduced Weight.
  9. Full compatible with TEDDY software running under Windows.Advanced acquisition and analysis software for tubinginspection and surfaces.
  10. Data display in real time: Strip-chart, Lissajous, C-Scan, and 3Dviews.
  11. User definable screens.
  12. Configuration and calibration of instrument. Digital filters.
  13. Integration with mechanical systems.

Teddy Software

Teddy software includes a full suite of applications for advanced acquisition andanalysis for both tubing inspection and other components of the industry. TEDDY software is Windows XP/7 compatible. Alternatively drivers software andsupport documentation are available for customizable user applications withETbox instruments

Technical Specifications

GENERAL
Channels
16 time-slots up to 64 frequencies Multiplexed mode: 128 Simultaneous mode: 32 Mix mode: 512
Techniques
ECT (Eddy Current), ECA (Array), RFT (Remote Field)
EMITTERS
Number
2
Voltage
0 – 24Vpp, 1V step
Modes
Multiplexed and Simultaneous Injection
Frequency Range
10Hz to 5MHz.
RECEIVER
Number
2
Bandwidth
10Hz to 5MHz.
Gain range
0 to 40dB, 1 dB steps (Analog gain)
Algorithms
Hardware Null
Reference coil simulation
DIGITAL FUNCTIONS
A/D sampling rate
40 MSPS, 14 bits (internal processing @16 bits)
Acquisition rate
Up to 50000 acq/second
Synchronism
Internal Clock, External Digital Input, Encoder
Frequency Filters
Digital programmable FIR type,
Real Time Defect Recognition
Threshold detection
Tube-Air detection
OTHERS
ET connector
Lemo ECG.3B.318.CLN
Digital I/O
4 inputs, 4 output Isolated (TTL/ Differential)
Analog I/O
2 inputs Isolated, 2 Output Isolated. ±10V 20KHz Bandwidth
Encoder
6 encoders Isolated. TTL / Differential.
Incremental or Pulse Type.
Ethernet port
100/1000 BaseT
Dimensions
183 x 115 x 64 mm (DxWxH).
Power
100-240 Vac, 50-60Hz (20W)
ETbox2iR: 24 Vdc, 1 A max
