Advanced Ultrasonic Instrument
Sonia White
Main Features

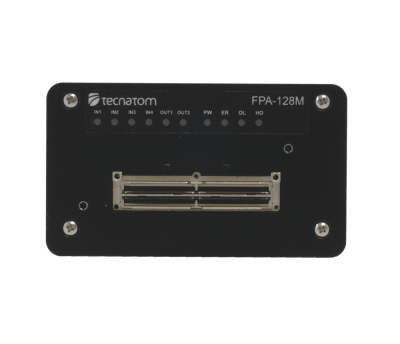

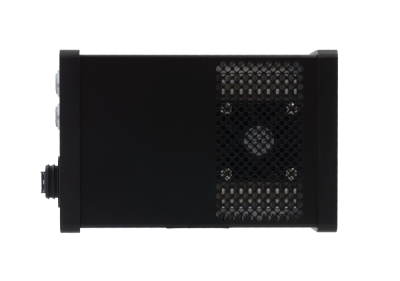

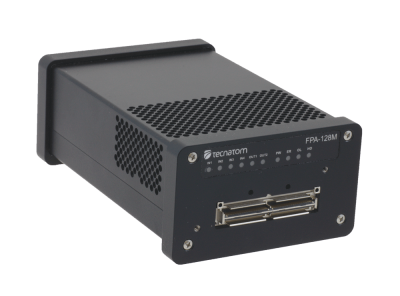

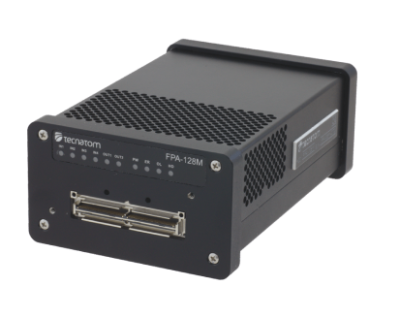

Sonia White is a phased-array ultrasonic module compatible with SONIA architecture. This module has 32×128 (multiplexed) UT channels with high performance in analog electronics and in digital signal processing.
- 32×128 UT channels, multiplexed (32 receivers, 128 pulsers).
- Separated TX/RX for pulse-echo, through transmission and tandem applications.
- Apertures from 1 to 32 elements.
- Bandwidth from 0.45 to 28MHz (probes from 0.5 to 20MHz).
- Negative square wave pulser, up to -100 V.
- High digital signal processing capabilities (DDF, digital filters, gates, signal types, etc…).
- Small size that permits to minimize the length of the transducers cables, digitizing the UT signal very close to the transducers. This implies lower UT signal distortion, attenuation and noise.
- Replace the analog communication lines by digital ones, immune to electromagnetic interferences (fiber optic), which means no signal distortion and/or noise in the transmitted signals and performance independent of installation layout.
- Low power consumption. Rugged enclosure , protection degree IP54.
- Small size that permits to minimize the length of the transducers cables, digitizing the UT signal very close to the transducers. This implies lower UT signal distortion, attenuation and noise.
- Replace the analog communication lines by digital ones, immune to electromagnetic interferences (fiber optic), which means no signal distortion and/or noise in the transmitted signals and performance independent of installation layout.
- Low power consumption. Rugged enclosure , protection degree IP54
Technical Specifications
GENERAL
Electronics
Electronics
UT channels
32×128 multiplexed channels (TX/RX separated)
UT techniques
Pulse-echo, through-transmission, tandem
PULSER
Type
Negative square wave
Voltage
-15 to -100 V, 1V steps
Width
20 to 1000 ns, 2.0 ns steps
Maximum PRF
20 KHz
Fall time
<6 ns
Impedance
<15 Ω
RECEIVER
Input range
0.8 Vpp
Bandwidth
0.45 to 28MHz @-3dB
Gain range
0 to 80dB, 0.1 dB steps (analog gain) 0 to 40dB, 0.1 dB steps (digital gain)
TGC
60 dB maximum range, 16 points, 16 ms extent, 32 ns resolution, 40dB/us slope
BEAM FORMER
Focal laws
Up to 4096, 128 scans.
Electronic Scan types
Linear, sectorial, complex
Focusing
Dynamic Depth Focusing (DDF)
DIGITAL FUNCTIONS
A/D sampling rate
125 MSPS, 12 bits (internal processing @18 bits) Sampling decimation factor: 1 to 16
Gates
4 gates, max + 8 first echoes per gate. 1 gate for interface echo synchronization
Signal modes
RF, True Envelope, Rectified (full, +/-), Logarithmic (digital)
Frequency Filters
Digital programmable IIR type, low-pass, high-pass, band-pass.
Noise reduction filters
Averaging
Anti-impulsive noise
Post-Rect smoothing filter
0 to 100% smoothing level control
Other digital functions
Real time alarms associated to echoes in gates.
Signal inversion.
Signal compression factor up to 64.
OTHERS
UT connectors
I-PEX Minidock
General I/O
4 digital inputs, 2 digital output (up to 24 V) optocoupled
Fiber optic port
LC-Duplex optical connector (1 Gbit full-duplex)
Dimensions
166x 111x 64 mm (DxWxH).
Power
24 Vdc, 25W typ
Accessories
IPEX to Hypertronics connectors converter IPEX splitter (2×64 channels) for dual probe applications
